Home Site for Mr. Norm's Super Truck 1/100

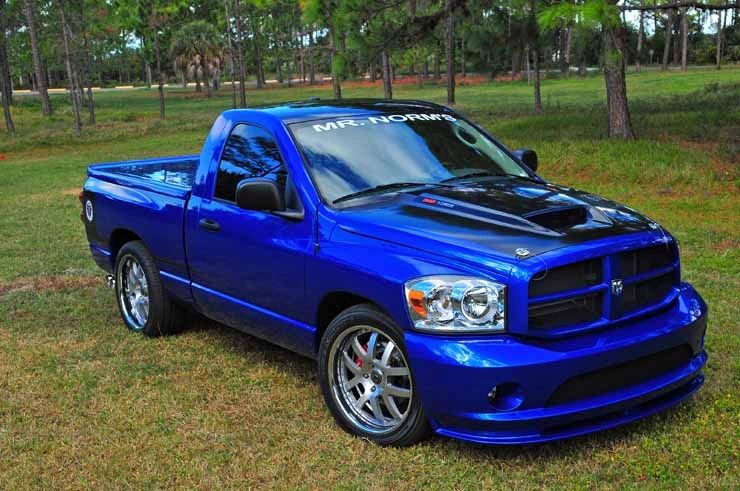

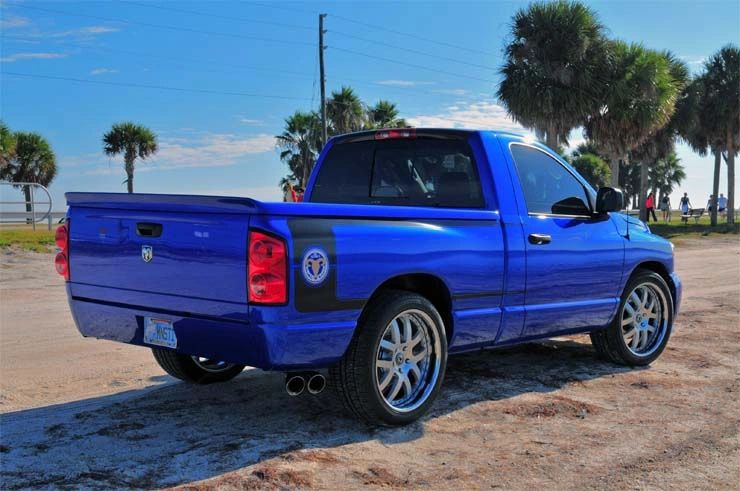

2008 Dodge Ram Sport
PB5 Electric Blue Pearl Coat
9.25 rear axle
3.92 gear

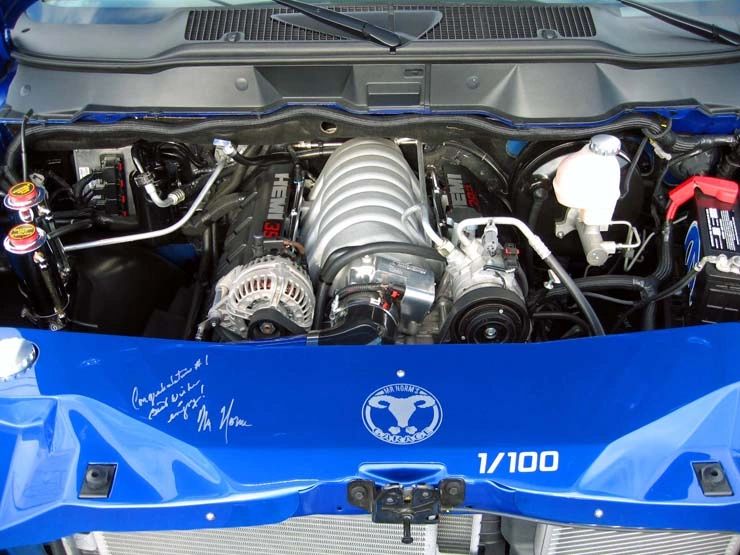

• Deep-Skirted Cast Iron Block with Cross-Bolted Mains
• CNC Ported Aluminum Twin-Plug Cylinder Heads
• Stainless Steel 2.100" Intake and 1.600" Exhaust Valves
• Ovate Wire (Beehive) Competition Valve Springs
• Viton Competition Valve Stem Seals
• Tony Bischoff  HHPNASTCM 227°/234° LSA 114  Hydraulic Roller Cam with .584" In,.552” Ex
• Forged Pistons (4.055" Bore)
• 10.3:1 Compression Ratio
• 4140 Forged Steel Crankshaft – 3.795" Stroke
• 4130 Forged Steel I-Beam Performance Connecting Rods – 6.200" Length
• SFI-Approved Competition Crankshaft Damper
• Premium Tri-Metal Performance Engine Bearings
• Precision Balanced Rotating Assembly
• Distributorless Coil-On-Plug (COP) Ignition System

•Arrington's Billet  s/n 001  90mm drive-by-wire Throttle Body
•Mr. Norms Ram Hammer CAI
•Kooks custom long tube headers
•Corsa Performance dual High Perf cat-back exhaust system
•FAN-PWM-V3 / Programmable Electric Fan Controller
•Dual SPAL VA10-AP70/LL-61A Fans (12" HP Curved Blade)
•Stock transmission with an APS Precision 2600 stall converter

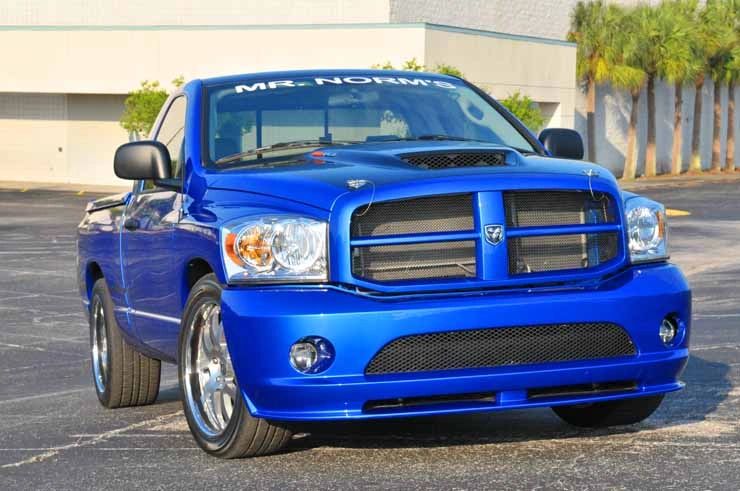

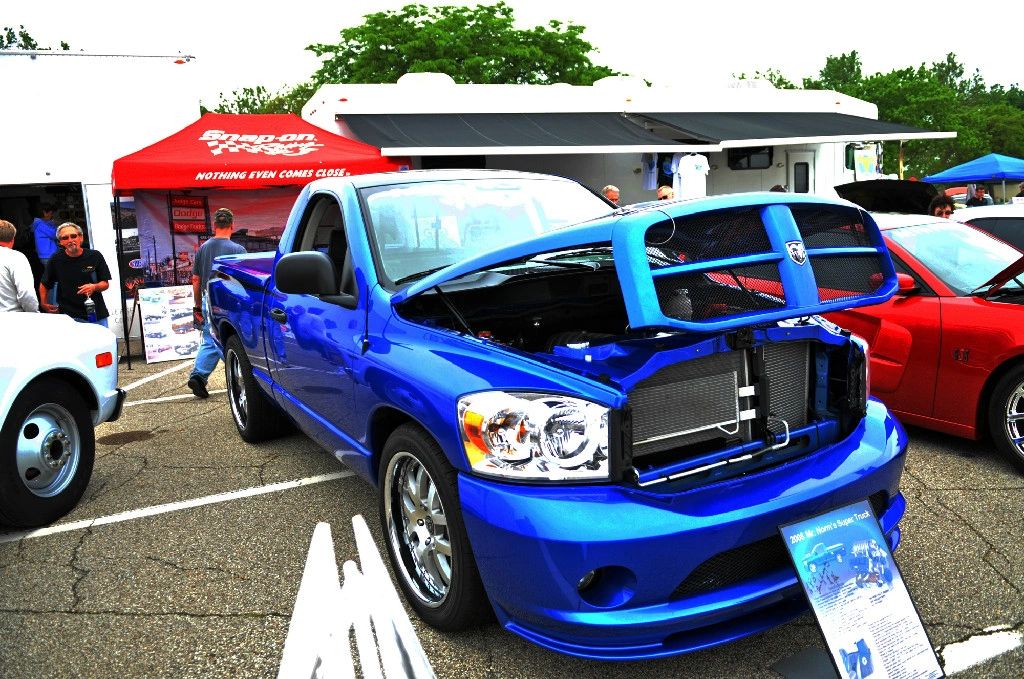

•Viper Ram front fascia with under tray and operational brake ducts
•B-Cool Billets diamond wire grille insert
•Eibach Pro Truck lowering with Belltech Nitro Drop 2 Shocks

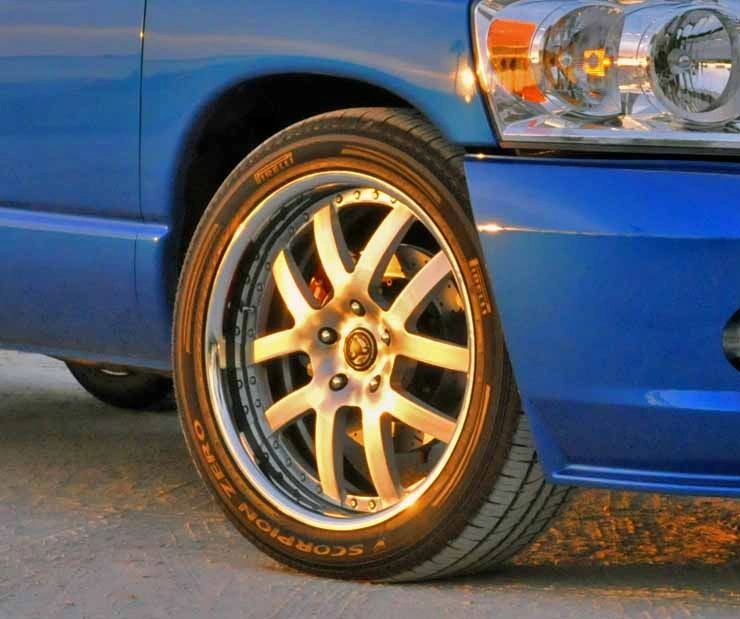

•Wheels by Rodtana, "The RT" 2 Piece Forged Construction
•22" Pirelli PZero 305/40ZR 114W rear  275/45R 112V front Ultra High Performance radial tires
•Mr. Norm's SSBC Force 10 Tri Power calipers with 14" cross drilled and ventilated rotors

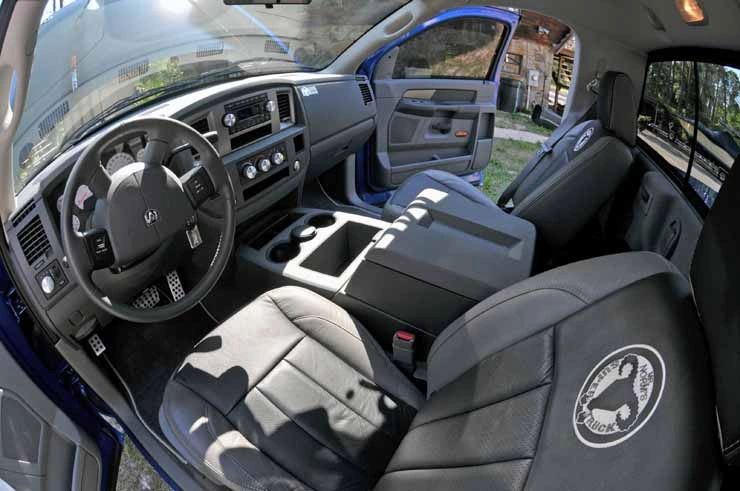

•Katzkin custom leather interior with Mr. Norm's embroidered logos
•Gaylord Tonneau Cover
•Mr. Norm's Billet fuel door

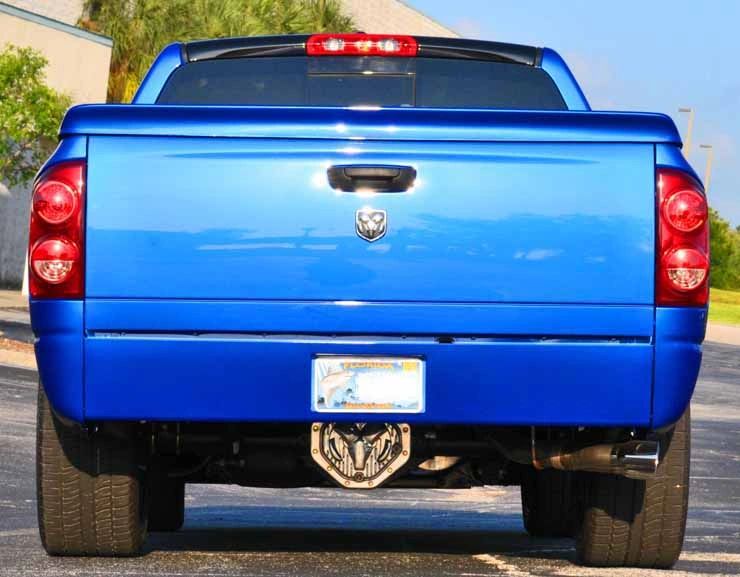

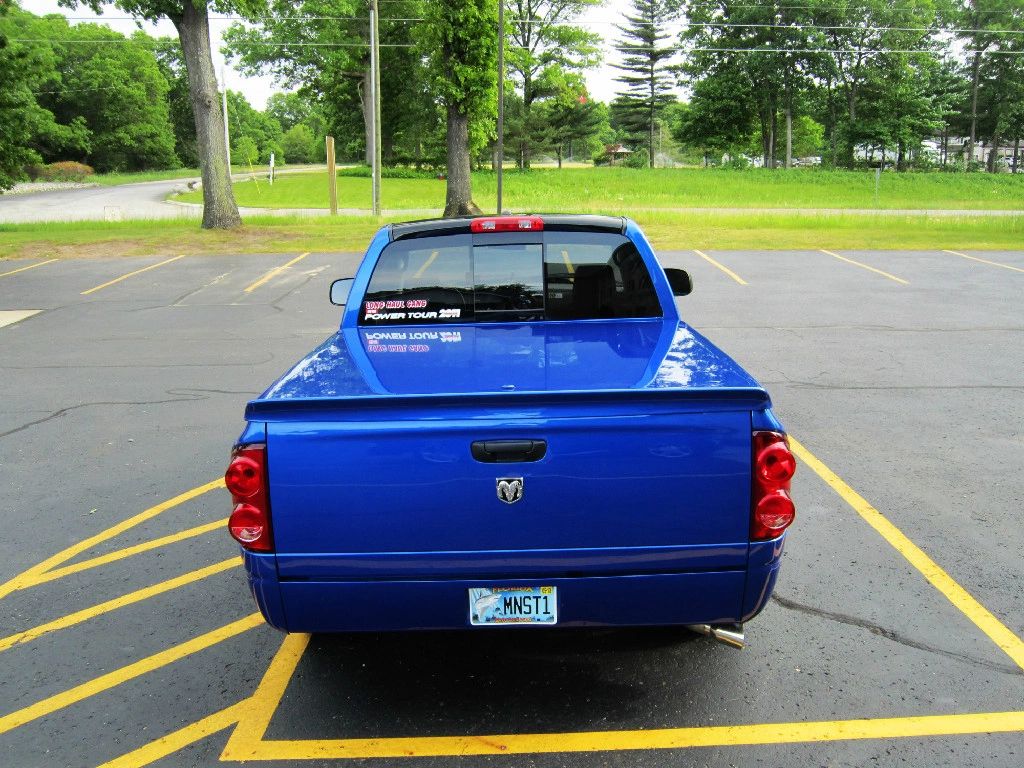

•Sir Michaels rear roll pan
Mr.Norm's Differential Cover by Oasis
•Mopar OEM Dodge Ram Rug bed liner
•Billet Technology dress-up performance accessories
•Tuned by Marty Fletcher
